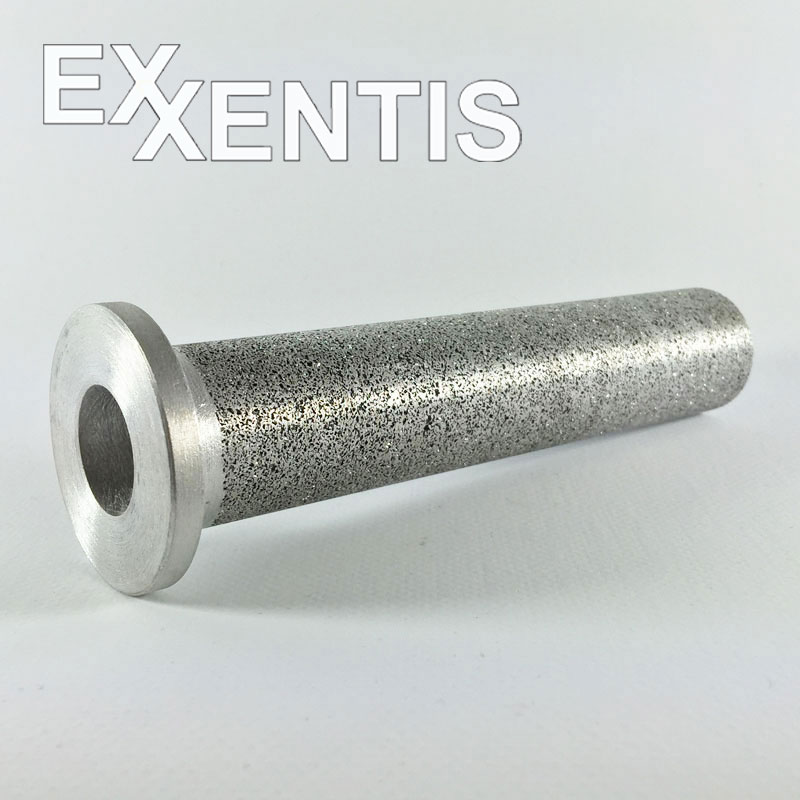

Porous cylinders
We produce cylinders from porous aluminum in a variety of possible configurations: Cylinders can be manufactured with or without an inner diameter, in various lengths and with different pore sizes, according to your individual requirements. Detailed information on different pore sizes and material properties can be found on the page “Properties of porous aluminium“.
The wide range of feasible dimensions and pore sizes meets our desire to offer you an optimal solution for your individual task. We manufacture all products from porous aluminium according to customer orders. At our warehouse in Switzerland we have sample plates in the size 90 x 165 x 6 mm available, which are well suited for the first acquaintance with the material and are available within a few days Europe-wide.
| Type | O.D. x I.D. x Length mm |
| FEC 30-50 | 30 x 20 x 50 |
| FEC 30-100 | 30 x 20 x 100 |
| FEC 30-150 | 30 x 20 x 150 |
| FEC 30-200 | 30 x 20 x 200 |
| FEC 30-300 | 30 x 20 x 300 |
| FEC 50-50 | 50 x 40 x 50 |
| FEC 50-100 | 50 x 40 x 100 |
| FEC 50-150 | 50 x 40 x 150 |
| FEC 50-200 | 50 x 40 x 200 |
| FEC 50-300 | 50 x 40 x 300 |
| FEC 70-50 | 70 x 60 x 50 |
| FEC 70-100 | 70 x 60 x 100 |
| Type | O.D. x I.D. x Length mm |
| FEC 70-150 | 70 x 60 x 150 |
| FEC 70-200 | 70 x 60 x 200 |
| FEC 70-300 | 70 x 60 x 300 |
| FEC 100-50 | 100 x 90 x 50 |
| FEC 100-100 | 100 x 90 x 100 |
| FEC 100-150 | 100 x 90 x 150 |
| FEC 100-200 | 100 x 90 x 200 |
| FEC 100-300 | 100 x 90 x 300 |
| FEC 130-100 | 130 x 120 x 100 |
| FEC 130-150 | 130 x 120 x 150 |
| FEC 130-200 | 130 x 120 x 200 |
| FEC 130-300 | 130 x 120 x 300 |
